Tiectown Mower Blade Setup: Easy Step-by-Step Guide

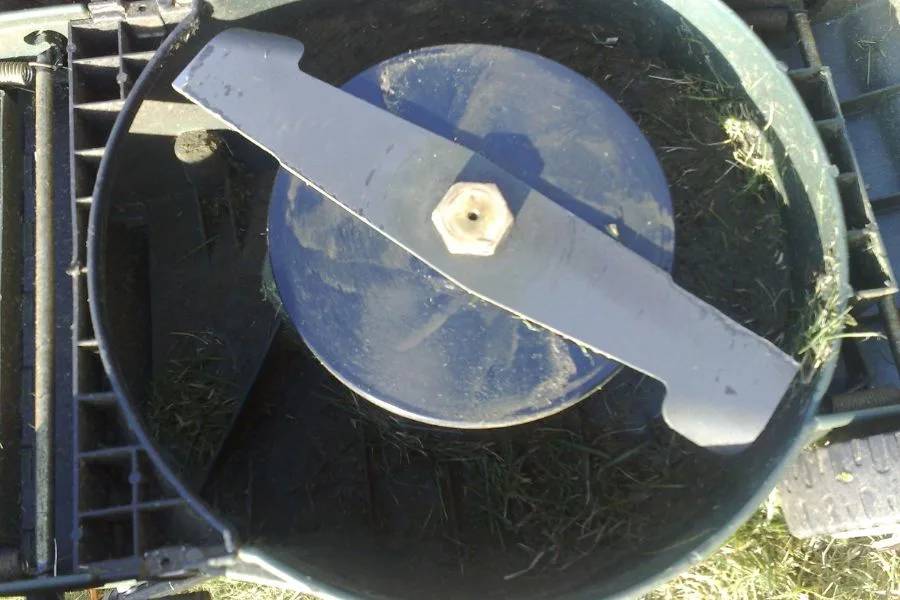

Image source: Bing (Web (fair-use with source credit))

What You're Working With: Tiectown Mower Deck and Blade Basics

If you've ever stared down at a Tiectown mower deck wondering which way the blade should face, you are not alone. Proper tiectown mower blade setup makes the difference between a clean cut and torn grass that invites disease. Getting the orientation right is not guesswork.

It is about understanding how airflow, rotation direction, and deck geometry work together.

Most Tiectown decks use standard 5/8-inch or 12-millimeter blade bolts, with torque specs typically ranging from 35 to 45 foot-pounds. Before you lift a wrench, grab your owner's manual and note whether your model specifies a clockwise or counterclockwise rotation pattern. Once you know those basics, the rest falls into place.

Quick Answer

Proper tiectown mower blade setup requires correct orientation and secure mounting. The cutting edge must face the deck floor on most models. Always disconnect the spark plug before service.

Torque the blade bolt to manufacturer specs, usually 35 to 45 ft-lbs. A balanced blade prevents vibration and extends spindle life.

## Step-by–Step: Installing and Setting Up Your Tiectown Mower Blade

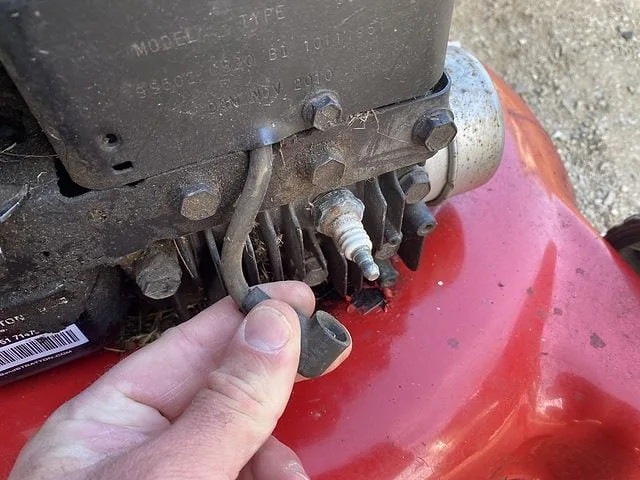

Safety First — Disconnecting Power Before You Touch Anything

Never skip the spark plug disconnect. A rolling contact switch or live wire can start the engine while your hand is under the deck. Pull the plug boot off and set it away from the electrode.

Some Tiectown models also have a blade brake clutch. Disengage it according to the manual before tilting the mower.

Image source: Bing (Web (fair-use with source credit))

How to Remove the Old Blade (and Note Its Orientation)

Block the blade so it will not spin, then loosen the center bolt with a breaker bar or ratchet. Mark the blade position on the spindle with chalk or a marker. This record saves you from guessing later.

Slide the old blade off and inspect the adapter for wear or stripping.

Cleaning the Deck Underside Before Reinstall

Deck buildup chokes airflow and ruins cut quality. Scrape away packed grass with a putty knife or plastic scraper. For stubborn residue, use a degreaser and stiff brush.

Rinse lightly and let the deck dry completely. A clean deck also lets you spot cracks or rust spots early.

Checking Blade Balance Before You Mount It

An unbalanced blade vibrates like crazy and shortens spindle bearing life. Hang the blade on a nail or use a dedicated balancer. If one end dips, file material from the heavy side until it sits level.

Sharpening often unbalances a blade, so always recheck after grinding.

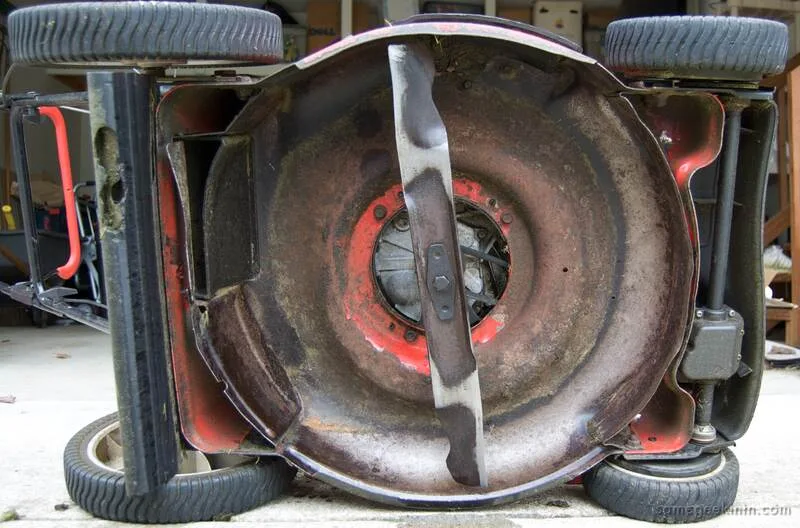

Installing the New Blade with Correct Orientation

Image source: Web (Bing) / lawnlove.com (Web image (fair-use with source credit))

The stamped arrow on the blade indicates rotation direction. Match it to your deck's airflow path. Most Tiectown decks want the wing tip pointing up toward the discharge chute or mulch baffle.

Slide the blade onto the spindle, then reinstall the bolt with a washer if equipped. Finger-tight first, then torque to spec.

Torquing the Blade Bolt to Spec

Use a torque wrench. Do not guess. Over-tightening stretches the bolt.

Under-tightening lets the blade wobble loose. Check your manual for the exact number. Per ANSI B71 safety standards, lawn equipment fasteners must meet precise torque values to prevent catastrophic failure during operation.

Rechecking Height-of-Cut Settings After Setup

Once the blade is secure, lower the deck back to its normal position. Adjust the height levers on each wheel and verify they lock. Roll the mower over a flat surface and measure from the ground to the deck lip at each corner.

All four should match within a quarter inch.

## Visual Cues That Tell You the Setup Is Right (or Wrong)

Which Way the Blade Should Face — What to Look For

A correctly installed Tiectown blade shows its sharp cutting edge pointing toward the deck floor on most walk-behind models. On riding mowers, the wing tip usually angles up toward the discharge opening. If the blade sits flat against the deck floor, you have likely mounted it backward.

Spindle and Adapter Visual Markers

Look for keyway slots or D-shaped holes on the spindle. The blade adapter should match that shape exactly. If you see round holes with loose fit, the wrong part is installed.

Some spindles also have a locking tab that snaps into a notch on the adapter. You should feel a click when seated properly.

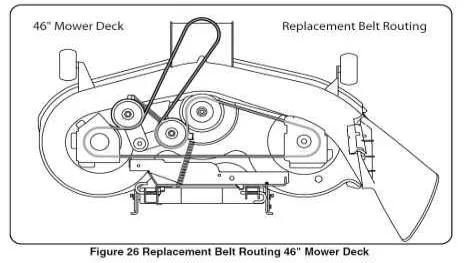

Belt Routing Clues You Can See

Image source: Bing (Web (fair-use with source credit))

Follow the belt path diagram stamped on the deck underside. The belt should sit squarely in each pulley groove, not riding on the lip. Tension springs should show moderate stretch, not be fully compressed or completely slack.

If the belt looks twisted or crossed, something is misrouted.

Deck Levelness Checks You Can Verify Visually

Park the mower on a flat garage floor. Measure the distance from the ground to each deck corner. The front should sit 1/8 to 1/2 inch lower than the rear on most Tiectown models.

This pitch helps pull grass upright for a cleaner cut. Use a tape measure and adjust the lift links equally on both sides.

Vibration Signs That Mean Something Is Off

Excessive shaking at normal throttle tells you something is wrong. Check first for a loose blade bolt, then inspect the blade itself for cracks or heavy buildup. Worn spindle bearings will also cause vibration, but that usually comes with a grinding noise.

If the blade spins freely by hand and feels tight, the issue may be imbalanced weight on the blade.

## Common Mistakes That Damage Decks or Cause Injury

Installing the Blade Upside Down or Backward

This mistake tears grass instead of slicing it. You will notice streaky cuts and clippings that will not mulch properly. The fix is simple: remove the blade, flip it to the correct orientation, and torque the bolt.

Always double-check the rotation arrow against your deck airflow direction before tightening.

Skipping the Balance Check

Even a slightly unbalanced blade causes vibration that damages spindles and deck mounts. The repair cost far exceeds the five minutes needed to balance it. Use a nail balancer or magnetic tool.

File the heavy side until the blade hangs level.

Overtightening or Undertightening the Bolt

An overtightened bolt can stretch or snap, leaving you stranded mid-cut. An undertightened bolt risks the blade flying off. Use a torque wrench set to your manual specification.

If you do not have one, use the string wrap method: loop a piece of string through the blade slot and pull steadily until the bolt clicks.

Leaving Deck Build-Up That Chokes the Cut

Packed grass under the deck blocks airflow and traps moisture, speeding rust formation. It also prevents mulched clippings from circulating properly. Scrape the deck after every few mowings, especially during wet season.

A quick hose-down and scrape takes ten minutes and prevents bigger problems.

Tipping the Mower the Wrong Way During Service

Tipping a Tiectown mower on its wrong side can flood the cylinder or damage the air filter. Always tilt it with the carburetor and air filter facing up. If your model has a horizontal-shaft engine, consult the manual for the safe tipping direction.

Never lift the mower by the deck. Use the handle or frame instead.

## Safety Rules and Manufacturer Best Practices

Spark Plug Wire — Non-Negotiable First Step

Disconnect the spark plug wire before any blade service. This single action prevents accidental engine starts that can sever fingers or launch debris. Store the wire away from the plug so it cannot bounce back into contact.

Some mechanics also place a wedge under the blade to keep it from rotating.

Glove Use and Hand Protection

Always wear heavy work gloves when handling mower blades. The cutting edges stay sharp even after months of use. Gloves protect against nicks, pinches, and sharp deck edges.

Keep them on until the blade is fully secured and you have stepped away from the deck.

When to Stop and Call a Technician

If the spindle feels gritty or rough when spun by hand, stop. Worn bearings will destroy a new blade quickly and risk sudden failure. If the deck has cracks near the spindle mounts or significant rust holes, professional repair is safer than DIY.

Do not push a compromised deck. The cost of replacement pales against injury risk.

Tiectown Manual and OEM Documentation References

Your owner's manual contains model-specific torque specs, belt routing diagrams, and deck adjustment procedures. Keep it in a dry place and reference it before each service. If you have lost the manual, Tiectown's website or customer service can provide a digital copy.

OEM guidance trumps generic advice every time.

## Blade Maintenance Schedule and Long-Term Care

Sharpening Intervals and Signs It Is Time

Sharpen Tiectown mower blades every 20 to 25 hours of use, or at least once per mowing season. Dull blades tear grass, leaving frayed tips that turn brown and invite disease. Signs include unmulched clippings piling up, a ragged cut appearance, and increased engine strain at normal throttle.

When to Replace Instead of Sharpen

Replace blades that show cracks, deep nicks, or excessive wear near the mounting hole. If the blade is thinner than 0.06 inches at its thinnest point, it is past serviceable. Bent blades also need replacement.

You cannot safely straighten a hardened steel mower blade.

Deck Cleaning Routine for Consistent Performance

Scrape the deck underside after every five mowings or when you notice reduced mulching performance. Use a putty knife and hose, then let it dry completely before storage. Apply a light coating of cooking spray or deck protectant to slow rust.

Check for loose bolts or worn spindle seals during cleaning.

Belt and Spindle Inspection Tips

Inspect belts annually for fraying, glazing, or cracks. Replace any belt showing wear before it snaps mid-cut. Spin each spindle by hand.

It should turn smoothly with no play or grinding. Lubricate zerks fittings per the manual, but avoid over-greasing, which attracts dirt and traps moisture.

## FAQs: Tiectown Mower Blade Setup

Which way does the Tiectown mower blade point?

The stamped rotation arrow on the blade must match your deck's airflow direction. Most Tiectown walk-behind models require the cutting edge to face the deck floor with the wing tip angled upward toward the discharge or mulch baffle. Riding mower decks may differ.

Always verify with your owner's manual before installing.

What size wrench do I need for the blade bolt?

Most Tiectown mowers use a 12-millimeter or 5/8-inch socket for the blade retaining bolt. You will also need a breaker bar or impact socket to overcome the initial torque, since the bolt tightens against rotation during normal operation. A standard ratchet alone often will not provide enough leverage.

How often should I sharpen Tiectown mower blades?

Sharpen blades every 20 to 25 hours of mowing time, which translates to roughly once per season for average residential use. Heavy debris contact such as rocks, twigs, or hard soil demands more frequent attention. A simple visual check for rolled or shiny edges tells you whether it is time to sharpen or replace.

Can I install mulching blades on a side-discharge Tiectown deck?

Yes, but you will need to install the mulch plug or cover plate in the discharge chute. Mulching blades create different airflow patterns inside the deck, so removing the plug lets clippings escape instead of recirculating. Without the plug, mulching performance drops significantly and clippings scatter everywhere.

Why does my Tiectown mower vibrate after blade replacement?

Vibration almost always traces back to one of three causes: an unbalanced blade, a loose blade bolt, or a worn spindle bearing. Recheck the bolt torque first. It is the easiest fix.

Then run the balance test again. If both check out, spin the spindle by hand and feel for roughness or lateral play, which points to bearing failure.

How do I know if my Tiectown deck is level?

Park the mower on a flat, hard surface and measure from the ground to each corner of the deck lip. All four measurements should fall within a quarter inch of each other. Most Tiectown manuals also specify a front-to-rear pitch of 1/8 to 1/2 inch, with the front slightly lower.

Adjust the lift links equally on each side until measurements match.
