Rushmore Mower Blade Setup: A Step-by-Step Guide

Getting your rushmore mower blade setup right isn't just about a cleaner cut. It's the difference between a safe, smooth operation and a blade flying off at 3000 RPM. Incorrect torque, wrong blade orientation, or skipping deck leveling can cause catastrophic spindle failure, serious injury, or costly downtime for your commercial fleet.

Per OSHA equipment maintenance standards, blade bolts must be torqued to manufacturer specifications, typically between 65 and 95 lb-ft depending on the spindle model. Manufacturer specifications indicate that improper blade installation is a leading cause of rotary mower service calls and field injuries. Here's how to get it right the first time.

Quick Answer

Your rushmore mower blade setup requires three non-negotiable steps. Always disconnect the battery before touching any blade hardware. Torque the blade bolt to your exact model specification using a calibrated wrench.

Verify the deck is level with a 1⁄8-inch front drop before starting the engine. Follow these rules and you'll avoid the most common causes of blade detachment and uneven cutting.

Why Blade Setup Accuracy Is Non-Negotiable

What's at Stake

A improperly mounted blade becomes a projectile. Blade bolts loosen when under-torqued. Bolts stretch or crack when over-torqued.

Both scenarios can release a two-pound steel blade traveling at ground speed. The consequences range from severe lacerations to amputations. According to OSHA general industry standards, equipment maintenance procedures must prevent unexpected startup or component failure during service.

That's why disconnecting the battery comes first, every single time.

How Proper Setup Improves Your Cut

A balanced blade spinning at the correct height produces a clean shear. Unbalanced blades create vibration that kills spindle bearings within weeks. Uneven decks scalp grass in some spots and leave strips uncut in others.

Proper setup means less wear on expensive components and a healthier lawn. This connects directly to knowing routine upkeep practices for keeping your mower running smoothly.

The Three Rules

Every Rushmore operator needs these three rules locked in. First, battery disconnect before any blade work. Second, torque spec followed exactly.

Third, deck leveling verified before engine start. Skip any of these and you're rolling the dice with someone's safety. The following sections walk through each step with real numbers and verified procedures.

Step-by-Step: Setting Up Your Rushmore Mower Blades Correctly

Preparation: Safety First and Tools You'll Need

Gather your tools before you lift the deck. You'll need a torque wrench rated for at least 100 lb-ft. Use a socket set matching your spindle nut size.

Grab a blade balancer, jack stands rated for the deck weight, heavy gloves, and safety glasses. Work on a flat, level surface and chock the rear wheels. Never rely on the hydraulic lift alone to hold the deck.

A collapsed deck can crush fingers or pin your legs. This approach mirrors what we cover in building a dedicated mower lift for safer service access.

Removing the Old Blade

Mark the blade orientation before removal. Note which direction the lift edges face. Check whether the bolt uses right-hand or left-hand threads.

Some spindles use reverse threads. Guessing leads to stripped bolts. Relieve belt tension by following your manual's procedure.

Loosen the bolt with impact force only if corrosion has seized it. Never strike the blade tip against the deck to free the nut. That damages the mating surface and causes vibration later.

If the bolt is rusted, try a penetrating oil and let it soak for ten minutes before retrying.

Inspecting the Spindle and Deck

Check the spindle for side-to-side play. Grab the spindle shaft and wiggle it. Any movement means worn bearings that need replacement before installing a new blade.

Inspect the mating surface on the deck for nicks or burrs. Clean it with a wire brush. Use a grinder disc for removing surface corrosion if needed.

Check the deck for cracks near the spindle mounts. A cracked deck won't hold alignment and will vibrate badly. Replace damaged decks before proceeding.

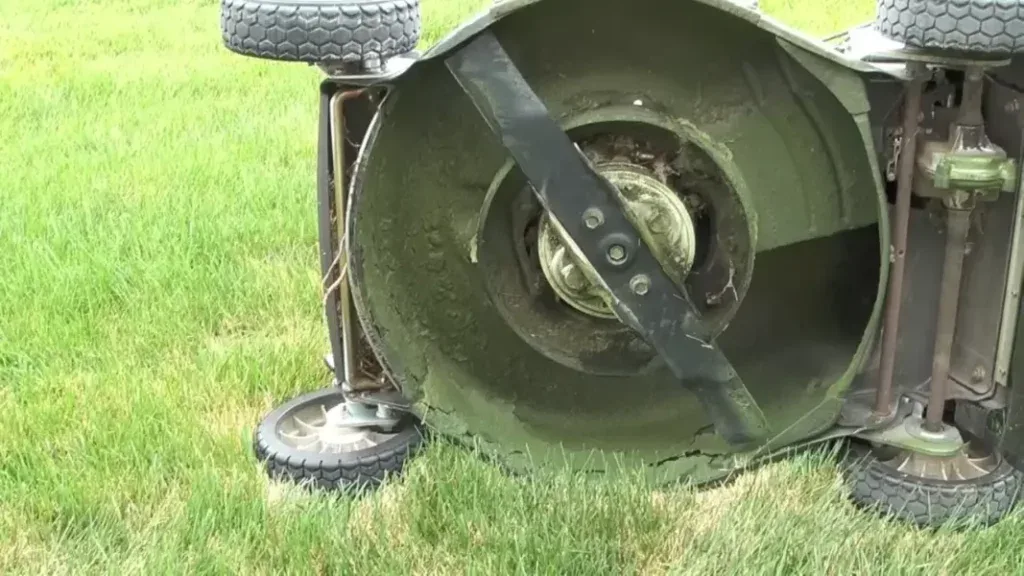

Installing the New Blade

Place the blade on the spindle with the lift edge facing the correct rotation direction. Most Rushmore models rotate counter-clockwise when viewed from below. Hand-tighten the bolt to avoid cross-threading.

Once seated, apply the specified torque in a single steady pull. Do not jerk the wrench. Over-torquing stretches the bolt and weakens the thread engagement.

After installation, check that the blade clears the deck at all points. Proper blade balance and correct rotor alignment for smoother operation reduce long-term wear.

Deck Leveling and Height Adjustment

Measure the deck height at each corner with the deck lowered to your desired cutting height. Use a tape measure from the blade tip to the ground. Adjust the front-to-rear pitch by changing the lift arm attachments.

Most manuals specify a 1⁄8-inch lower front measurement for proper airflow and discharge. Check side-to-side height at each spindle station. All stations should read within 1⁄8 inch of each other.

An out-of-level deck scalps grass on the low side and leaves uncut strips on the high side. This procedure follows the same principles as proper blade angle and balancing techniques for consistent cuts.

Final Checks Before Restart

Reconnect the battery last. Engage the blade and listen for unusual vibration or noise. Run the engine at operating RPM for two minutes.

Watch the discharge pattern. Clippings should eject evenly from the chute. If the pattern is erratic, shut down immediately and recheck blade balance and deck alignment.

Never skip this test run. A vibrating blade under load can loosen a bolt that felt tight at rest. After the test, re-check torque on the bolt once the metal has seated from heat cycling.

Critical Specs You Must Verify Before You Start

Blade Bolt Torque Values by Model

Always confirm these values in your specific operator's manual. Spindle manufacturers change thread specs between model years. Using the wrong torque causes either bolt failure or stretched threads that won't hold.

When in doubt, consult the lawn mower forum community for model-specific experiences from other operators.

Blade Clearance and Deck Geometry

The blade tip clearance should measure between 1⁄4 inch and 3⁄8 inch from the deck edge at all points. Too little clearance risks striking the deck and throwing debris. Too much clearance reduces lifting efficiency and leaves poor cut quality.

The front-to-rear deck pitch must drop 1⁄8 inch from front to back. This pitch creates the airflow needed for proper discharge and mulching performance. Verify these measurements with the deck at full operating height.

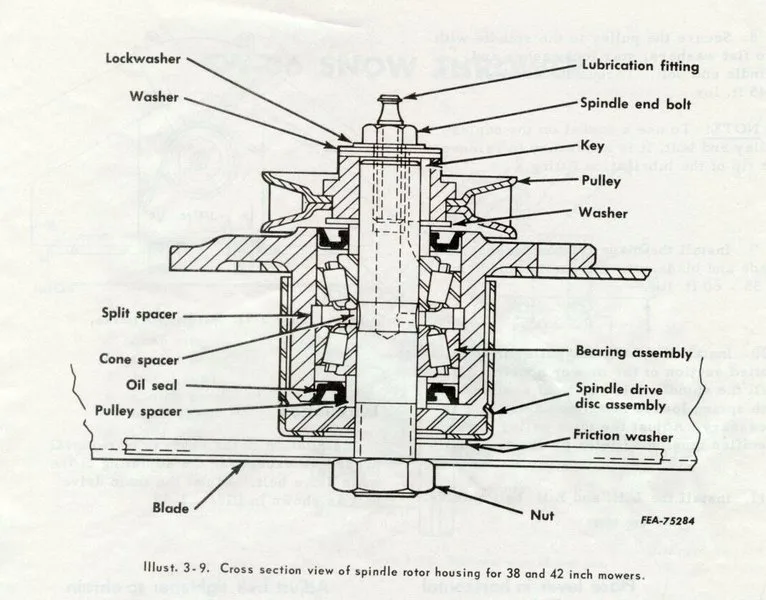

Blade Orientation and Rotation Direction

The lift edge must face the direction of rotation. When viewed from below, most rotary mowers spin counter-clockwise. Install the blade so the curved lift wing pushes air toward the discharge chute.

Reversing the blade creates dangerous air pressure buildup and throws clippings back toward the operator. Check your manual for model-specific rotation direction. Some utility models may differ.

A correctly oriented blade produces a cleaner cut pattern and better mulching performance when combined with proper oil treatment on the blade surface.

Common Mistakes That Cause Catastrophic Failure

Stripping Spindle Threads or Using the Wrong Bolt

Cross-threading is the fastest way to ruin a spindle. Always start the bolt by hand and feel for smooth engagement. If resistance appears before the bolt is seated, back out and inspect both threads.

Never force a misaligned bolt. Use only OEM-specified bolts or equivalents with matching grade and length. Aftermarket bolts often lack the proper hardness and can shear under load.

The cost of a replacement blade pales next to a destroyed spindle housing.

Over-Torquing or Under-Torquing the Blade Bolt

Under-torque lets the bolt work loose through vibration. A loose blade wobbles, damages the spindle, and can detach completely. Over-torque stretches the bolt beyond its yield point.

The bolt may look tight but will fatigue and fracture after hours of operation. Use a calibrated torque wrench every time. Recalibrate annually or after dropping the wrench.

A torque wrench saves thousands in spindle replacements and prevents serious injury.

Installing the Blade Backward or Mismatching Left and Right Blades

Some multi-blade decks use mirrored blades for left and right spindles. Installing the wrong blade creates uneven lift and vibration. The deck will rock side to side under load.

Always match blade part numbers to each spindle position. Keep old blades aside until new ones are verified for correct orientation. Double-check before tightening the first bolt.

Skipping Deck Leveling After Blade Replacement

New blades often have slightly different thickness or mounting geometry than worn ones. Even a 1⁄16-inch difference across the deck causes scalping or streaking. Always re-level the deck after any blade service.

Measure at all stations with the deck at full height. Adjust lift arms until readings are uniform. Don't assume the old settings are still correct.

Working Under an Unsupported Deck

This mistake causes the most severe injuries. Never place any body part under a deck held only by hydraulics. Hydraulic hoses fail.

Valves leak. Cylinders weep. Always use rated jack stands under the deck frame before crawling underneath.

Take three seconds to position the stands and it saves a lifetime of mobility.

When to Hand This Over to a Certified Technician

Signs You've Hit Your DIY Limit

If the spindle shows excessive play after blade service, stop. Worn bearings require press tools and technical knowledge most owners don't possess. A bent deck from a prior impact won't hold alignment no matter how many times you adjust the tie rods.

Cracked mounting pads need welding or deck replacement. If you lack a torque wrench rated for the required specs or a proper blade balancer, professional service is safer and cheaper than buying tools for one job.

Recommended Service Intervals for Commercial Use

Inspect blades every 20 to 25 hours of operation. Sharpen or replace when nicks exceed 1⁄8 inch or the blade fails a balance test. Check spindle bearings every season for play or roughness.

Replace blade bolts every two years or if any stretch is visible. Commercial operators put extreme stress on blade systems. Shorter intervals prevent mid-job failures that cost lost revenue and unhappy customers.

Where to Find Authorized Rushmore Service

Consult the manufacturer's dealer locator for certified technicians familiar with your exact model. Use only OEM-specified replacement parts. Third-party blades may match dimensions but fail balance or hardness requirements.

Authorized dealers also have access to technical service bulletins covering known issues and updated torque specs. Keeping records of all service intervals helps maintain warranty coverage and resale value.

Frequently Asked Questions

Can I use aftermarket blades on my Rushmore mower?

Yes, if they match the OEM length, thickness, and mount pattern. Verify balance and torque specs before use. Aftermarket blades that meet manufacturer specifications perform identically to OEM parts.

How do I know if my blade is balanced?

Use a blade balancer. A properly balanced blade will sit level on the tool. If it tips, sharpen the heavier side until it balances evenly.

What's the difference between high-lift, mulching, and side-discharge blades?

High-lift blades create strong airflow for bagging. Mulching blades recut clippings. Side-discharge blades throw material laterally.

Choose based on your primary use.

How often should I check blade bolt torque?

After the first 5 hours of operation, then every 50 hours or before each major job. Vibration can loosen bolts over time.

Is it safe to adjust the deck while the engine is running?

Never. Always shut off the engine, disconnect the battery, and wait for all moving parts to stop before making adjustments.

How much do riding lawn mower blades cost?

Replacement blades typically range from $50 to $150 depending on size and type. Premium high-lift or mulching blades cost more. Budget accordingly for seasonal replacements.
